Seamless Fit
The magwell is exclusively compatible with short grips and is specifically designed to pair seamlessly with the ergonomic SpidErgo Grips for optimal performance. It’s available in two sizes, each tailored to match the corresponding SpidErgo Grip size range. Be sure to select the right size to suit your setup.
Seamless Fit
The magwell is exclusively compatible with short grips and is specifically designed to pair seamlessly with the ergonomic SpidErgo Grips for optimal performance. It’s available in two sizes, each tailored to match the corresponding SpidErgo Grip size range. Be sure to select the right size to suit your setup.
Ergonomic Contour

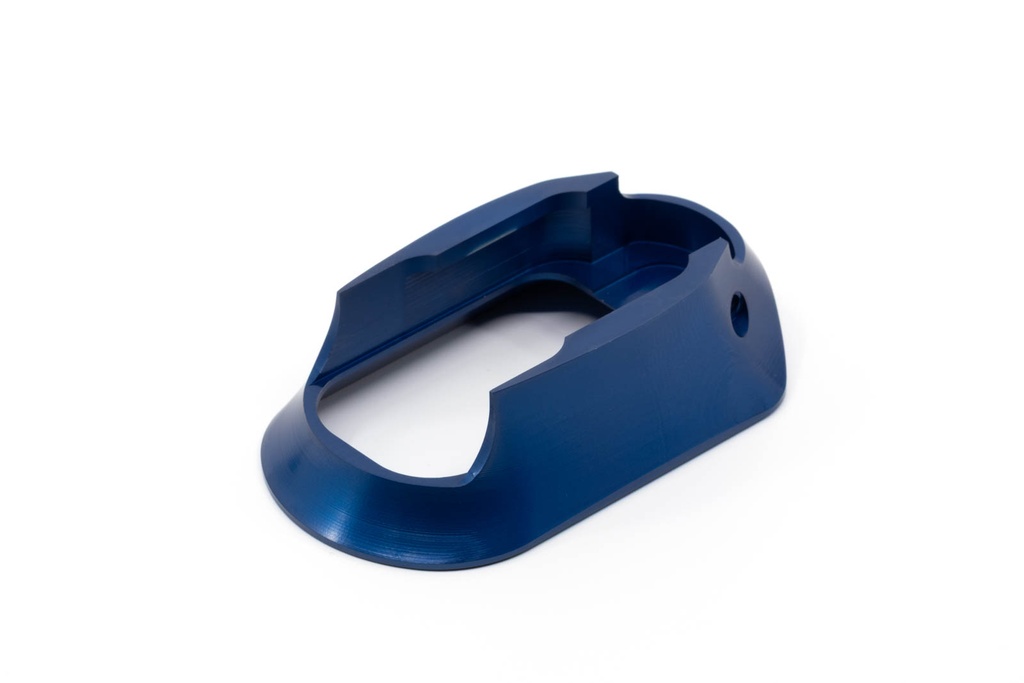

Armanov CZ magwell boasts a smooth, ergonomic design with a curved front that transitions seamlessly from the pistol frame, providing a natural, comfortable hold. Lowered and flared back end is specially designed to support your palm, enhancing control and stability during shooting.
Ergonomic Contour
Armanov CZ magwell boasts a smooth, ergonomic design with a curved front that transitions seamlessly from the pistol frame, providing a natural, comfortable hold. Lowered and flared back end is specially designed to support your palm, enhancing control and stability during shooting.
Large Insertion Area
The insertion area size is 200% of the original size with extended back end to allow much faster and more reliable reloads.
Large Insertion Area
The insertion area size is 200% of the original size with extended back end to allow much faster and more reliable reloads.
Compatibility
CZ Shadow 2
Full Size series of Pistols
Magwell is compatible only with short grips.
Installation
Remove Grips
For easier installation, it is recommended to first remove the grips from the firearm.
Install the Magwell
Once the grips are removed, slide the magwell onto the frame until it fits securely in place. Lightly tighten the set screw with supplied hex key.
Reinstall Grips
After positioning the magwell, reinstall the grips. This ensures a secure fit and optimal function of the magwell.
Remove Grips
For easier installation, it is recommended to first remove the grips from the firearm.
Install the Magwell
Once the grips are removed, slide the magwell onto the frame until it fits securely in place. Lightly tighten the set screw with supplied hex key.
Reinstall Grips
After positioning the magwell, reinstall the grips. This ensures a secure fit and optimal function of the magwell.

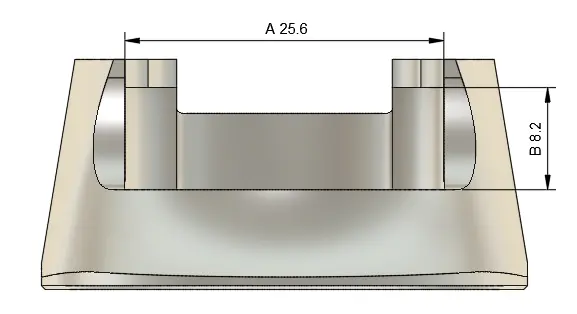

Dimensions of magwell for small/medium vs. large grips:
Dimensions are in millimeters
Dimensions of magwell for small/medium vs. large grips:
Dimensions are in millimeters
Make sure to use magazine base pads that are magwell compatible, such as our Speed Line Base Pads for CZ.
Make sure to use magazine base pads that are magwell compatible, such as our Speed Line Base Pads for CZ.
What Comes in the Box?
1 x Magwell for CZ Shadow 2
1 x M4 x 3 Set Screw
1 spare screw is included
1 x 2 mm Hex Key
Due to use of high tensile strength aluminum which is harder to anodize, slight color inconsistencies may occur.
Material
Anodized 6082 Aircraft-Grade Aluminium or Polished CW617N Brass
Size
65 x 39 x 18.5 mm
Material
Anodized 6082 Aircraft-Grade Aluminium or Polished CW617N Brass
Size
65 x 39 x 18.5 mm
Aluminium - Small/Medium
Aluminium - Large
Brass - Small/Medium
Brass - Large
Aluminium - Small/Medium
Aluminium - Large
Brass - Small/Medium
Brass - Large
